Description

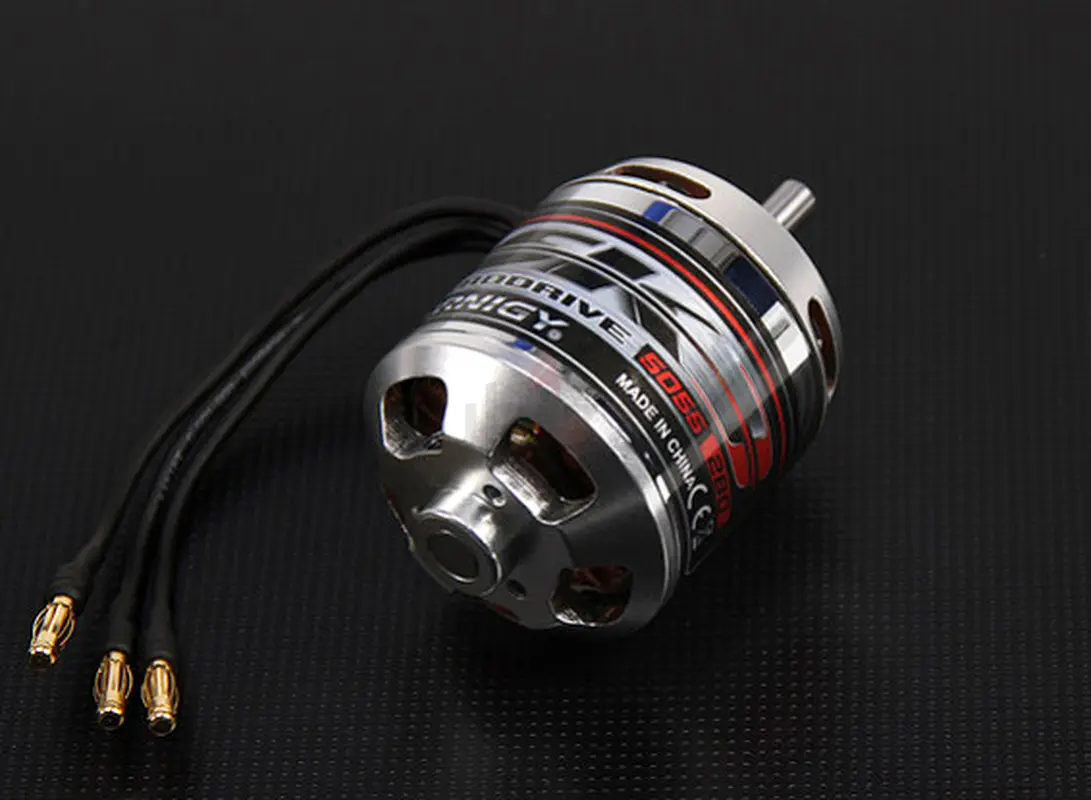

Turnigy SK3 brushless motors are yet another step forward in motor evolution.
Once again we instructed our engineers to develop a motor that would not only rival but surpass the quality of the leading motors on the market today using the best quality magnets, bearings, and materials available.
The result is an outstanding series of motors that are efficient, strong, and robust enough for the most discerning modeler.
All of the SK3 series use quality double-shielded bearings, sintered neodymium magnets (the strongest type of permanent magnet commercially available), and a string wound stator to ensure accurate and consistent winding each and every time.
The Turnigy SK3 motors are suited to modelers who are seeking a top-quality brushless motor without compromise.
Features:
• Double shielded bearings
• Sintered neodymium magnets
• String wound stator
• High-quality finish
• Super-smooth operation
Specs:
Turns: 18T
Voltage: 6~10S LiPo
RPM/V: 280KV
Internal resistance: 0.031 Ohm
Max Loading: 60A
Max Power: 1580W
Shaft Dia: 6.0mm
Bolt holes: 25mm
Bolt thread: M4
Weight: 369g
Motor Plug: 4mm Bullet Connector

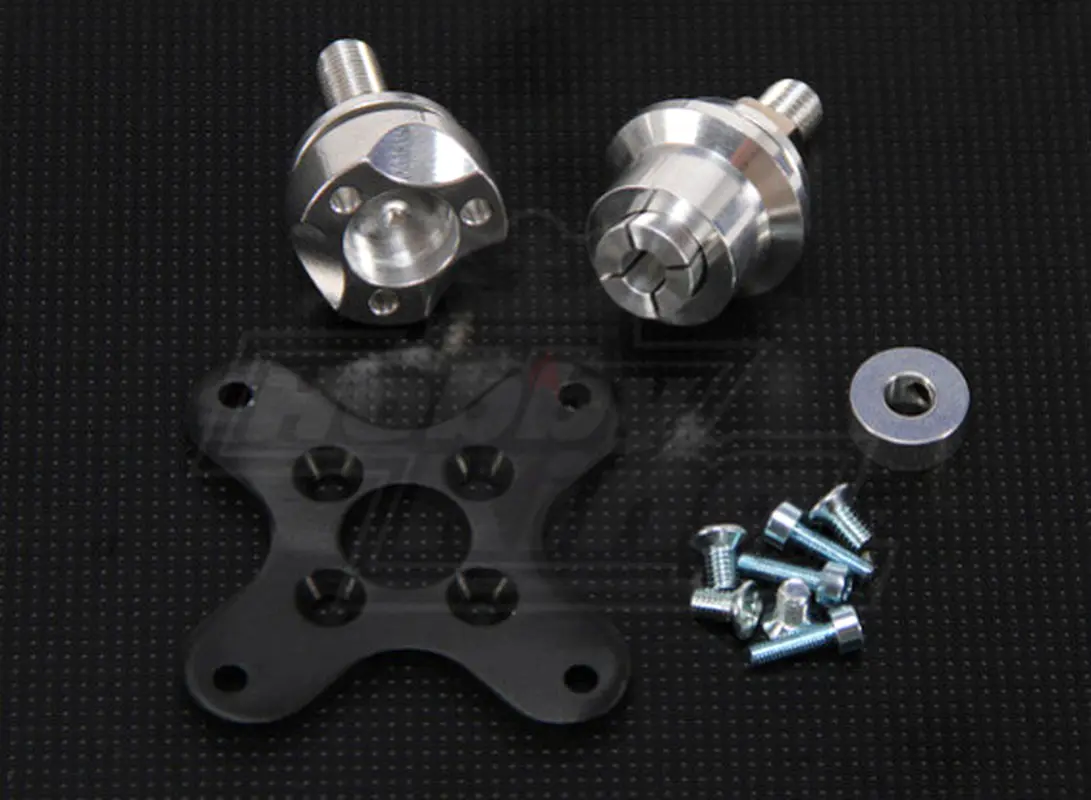

Included:
Motor
Mount & screws
Prop adapter
Performance Data (6S):
18x12: 1003W, 48A, 5232g static thrust
19x12: 1166W, 56A, 5850g static thrust
20x10: 1184W, 57A, 5653g static thrust
Performance Data (8S):
15x10: 1081W, 38A, 4932g static thrust
16x10: 1316W, 47A, 5740g static thrust
17x10: 1570W, 56A, 6566g static thrust
Performance Data (10S):
13x8: 1049W, 29A, 4255g static thrust
13x10: 1255W, 35A, 5191g static thrust
14x10: 1580W, 45A, 6230g static thrust
