Description

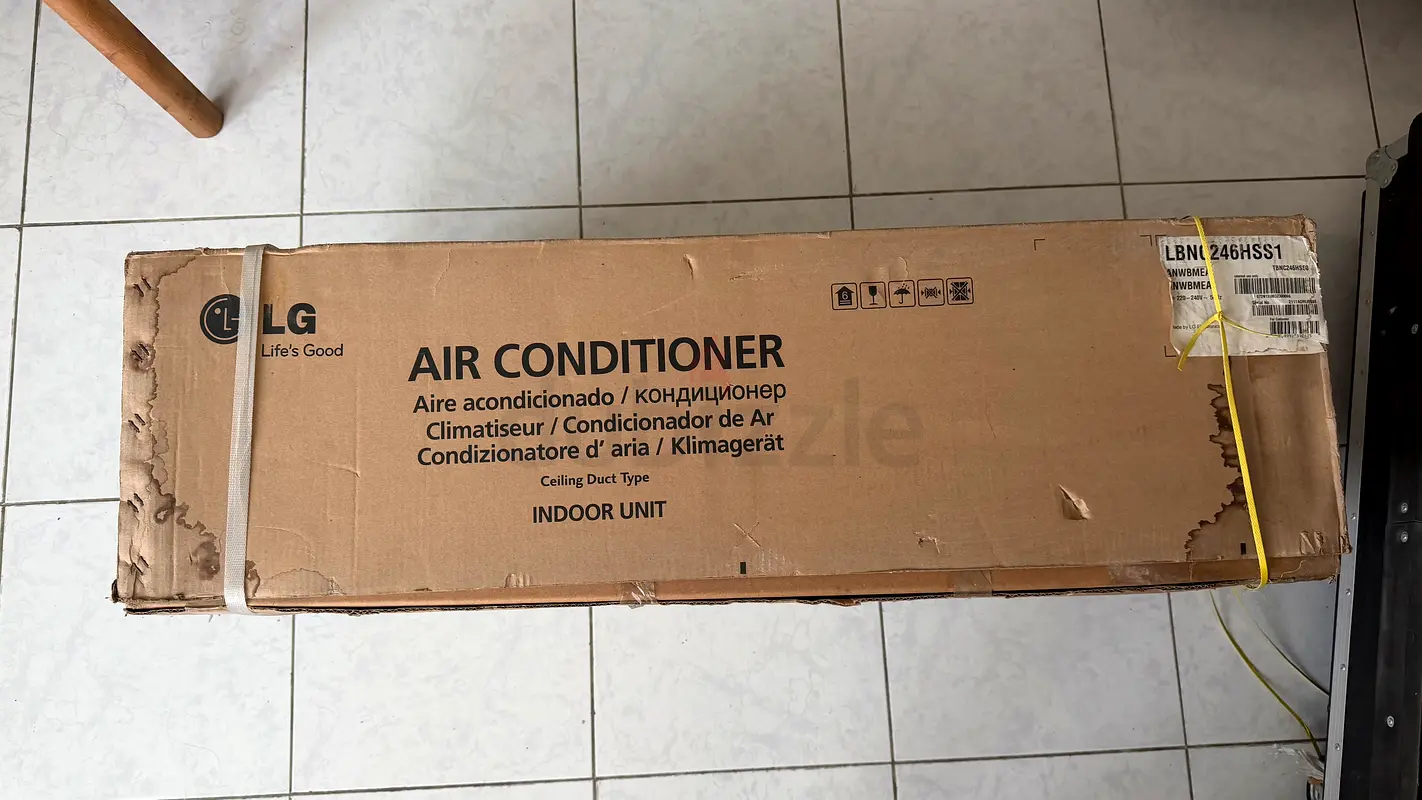

The LG LBNC246HSS1 is a 24,000 BTU (2.0 Ton) Ceiling Concealed Duct Type indoor unit, a concealed ceiling duct-type indoor AC unit designed for commercial or residential ducted cooling systems.
Key Specifications:
Model: LBNC246HSS1
Type: Ceiling Concealed Duct Indoor Unit
Cooling Capacity: 24,000 BTU/hr
Approx. Cooling Output: 7.0 kW
Power Supply: 220–240V / 1 Phase / 50Hz
Power Input: Approx. 2,700–2,750 W
Running Current: Approx. 12 A
Airflow (High/Medium/Low): 18 / 16.5 / 14 CMM
Noise Level (Indoor): 37 / 35 / 33 dB(A)
Moisture Removal: Approx. 2.7 L/hr
Fan Speed: 3-step fan control
Max Piping Length: Up to 50 m
Max Elevation Difference: Up to 30 m
Refrigerant Pipe Size: Liquid: 1/4", Gas: 5/8"
Control Type: Wired LCD Remote Controller
Installation Style: Hidden ceiling duct installation
