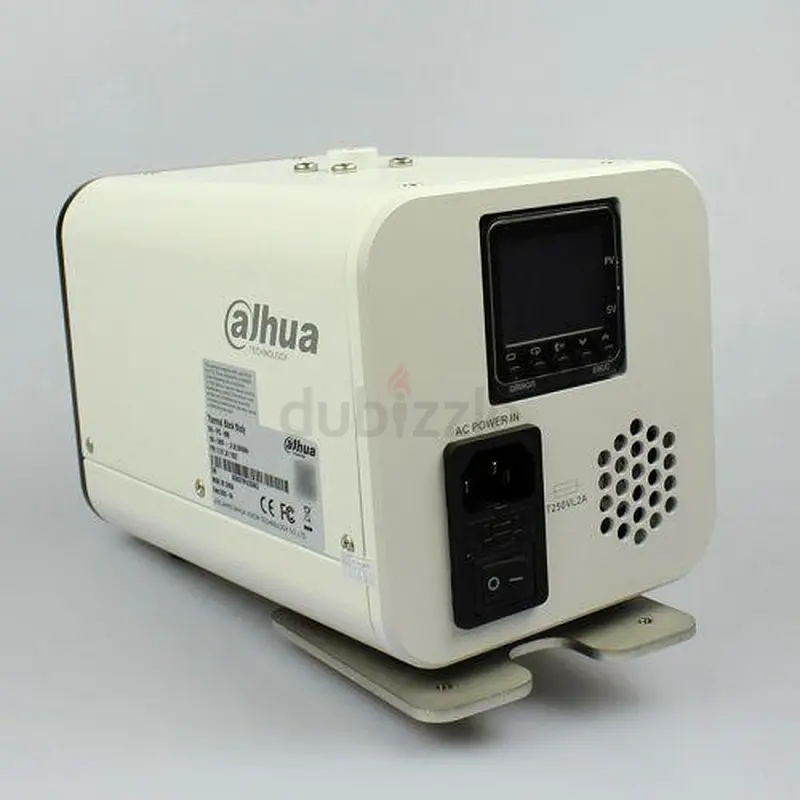

Dahua DH-TPC-HBB Thermal Imager Calibrator

Name: Dahua DH-TPC-HBB Thermal Imager Calibrator
Brand: Other
Price: 9500 AED
Availability: InStock

AED 9,500

Ezy

4.8

1442 items live

Item Details

Age

1-6 months

Condition

Almost no noticeable problems or flaws

Warranty

Does not apply

Usage

Out of original packaging, but only used once

Brand

Other

Posted on: 1st July 2026

Description

Dahua JQ-D70Z. Blackbody camera to complement with DAHUA-2181 body temperature measurement camera (TPC-BF3221P-TB7F8-HTM)220V AC. Blackbody camera dahua.

Description

Better known as "Blackbody", it is a certified instrument that, inserted into the field, provides a constant and accurate temperature reference that the camera uses to self-calibrate and increase measurement accuracy.

Features

DAHUA-2181 Human Temperature Measurement Reference Unit (TPC-BF3221P-TB7F8-HTM)
The smart temperature control meter is used to monitor temperature with high precision and stability
Target surface is coated with high emissivity aviation coatings
Specifications

PT100 temperature sensor
Factory setting working temperature: 35 ?, 37 ?, 40 ? (ambient temperature +5.0 50.0 adjustable)
70 x 70mm effective radiant surface
Temperature resolution: 0.1 ?
Temperature accuracy: ± 0.2 ? (single point)
Temperature stability: ± 0.1 ~ 0.2 ? / 30min
Effective emissivity: 0.97
Pt100 temperature sensor
Ambient temperature: 0 ? ~ + 40 ?
Relative humidity of ≤80%
Power: 220V AC, 50Hz
Consumption: 35W
Dimensions: 110 (W) x 120 (H) x 180mm
Net weight 1.8 kg
