Description
Floorstanding Speakers (Jamo S 807)

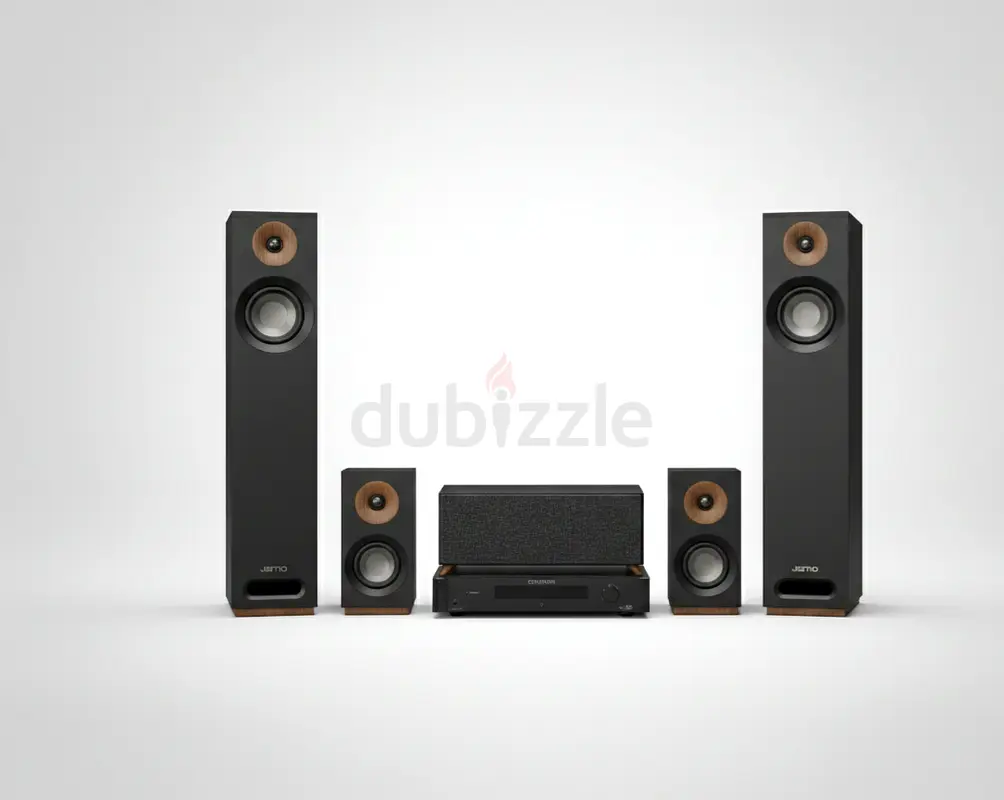

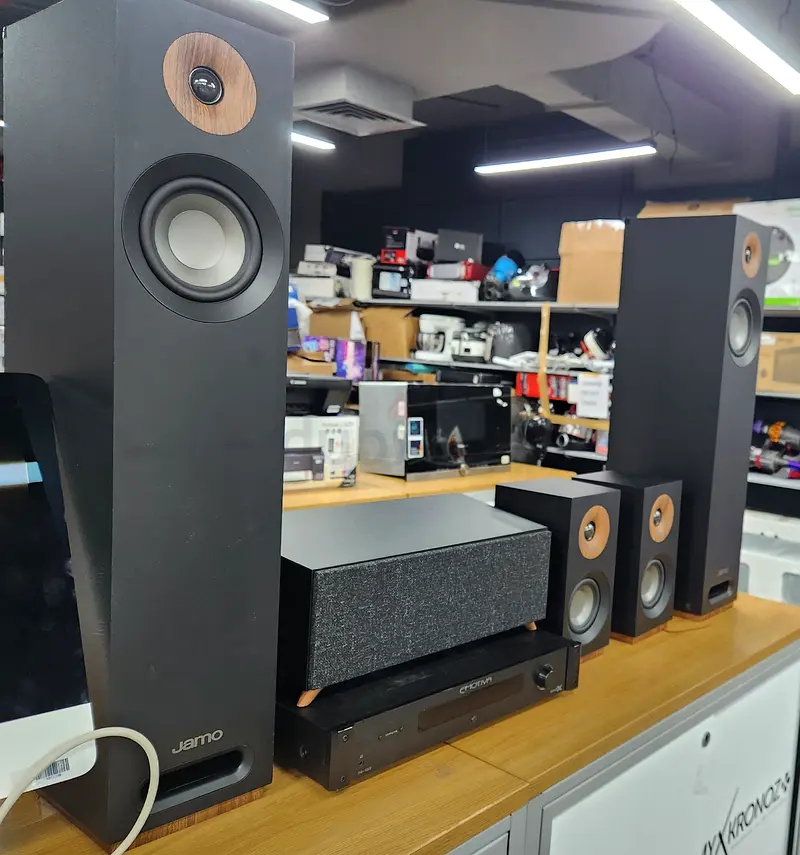

These are the tall towers on the far left and right. They are distinctive for their front-firing slot ports and "Atmos-ready" metal feet on top.
• Power Handling: 100W (Continuous) / 200W (Peak)
• Impedance: 8 Ohm
• Frequency Response: 42\text{ Hz} - 26\text{ kHz} (+/- 3dB)
• Drivers: 1" Soft Dome Tweeter; 2 x 5" Polyfiber Woofers
• Sensitivity: 90\text{ dB} (2.83\text{V} @ 1\text{m})
Bookshelf Speakers (Jamo S 803)
These are the two smaller speakers positioned in the middle. Like the towers, they feature connection points on top for optional Dolby Atmos modules.
• Power Handling: 80W (Continuous) / 160W (Peak)
• Impedance: 8 Ohm
• Frequency Response: 57\text{ Hz} - 26\text{ kHz} (+/- 3dB)
• Drivers: 1" Soft Dome Tweeter; 5" Polyfiber Woofer
• Sensitivity: 87\text{ dB} (2.83\text{V} @ 1\text{m})
Center Channel (Jamo S 81 CEN)
This is the horizontal speaker with the grey linen grille.
• Power Handling: 60W (Continuous) / 240W (Peak)
• Impedance: 8 Ohm
• Frequency Response: 71\text{ Hz} - 26\text{ kHz} (+/- 3dB)
• Drivers: 1" Soft Dome Tweeter; 2 x 4" Polyfiber Woofers
• Sensitivity: 86\text{ dB} (2.83\text{V} @ 1\text{m})
