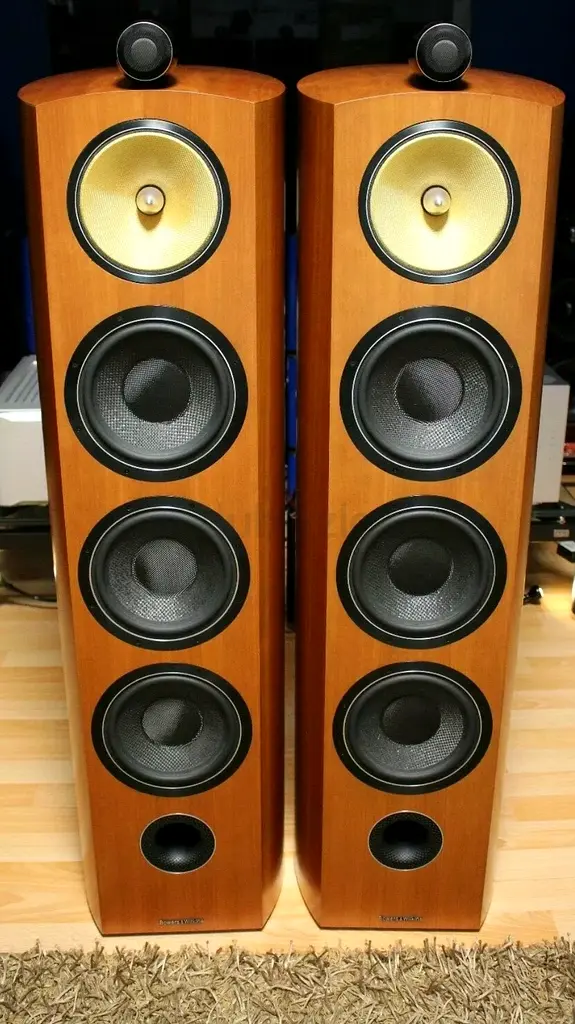

Bowers & Wilkins 803 Diamond Speakers

AED 24,500

Saf

5.0

10 items live

Item Details

Age

2-5 years

Condition

Almost no noticeable problems or flaws

Warranty

No

Usage

Used only a few times

Posted on: 23rd October 2026

Description

Audio Performance & Electrical Specs

• Frequency Response: 35 Hz – 28,000 Hz (±3 dB)
• Frequency Range: 28 Hz to 33 kHz (-6 dB)
• Sensitivity: 90 dB (2.83 V, 1 m)
• Nominal Impedance: 8 Ω (Minimum 3.0 Ω)
• Crossover Frequencies: 350 Hz / 4,000 Hz
• Recommended Amplifier Power: 50 W – 500 W into 8 Ω on unclipped program material

Driver Configuration (5 Drivers, 3-Way System)

• Tweeter: 1 x 25 mm (1 inch) Diamond dome high-frequency driver inside a decoupled Nautilus™ tapering tube.
• Midrange: 1 x 150 mm (6 inch) Woven Kevlar® cone FST™ (Fixed Suspension Transducer) driver.
• Woofers: 3 x 180 mm (7 inch) Rohacell® cone bass drivers.

Cabinet & Physical Specs

• Enclosure Type: 3-way bass reflex (vented-box) utilizing a front-firing Flowport.
• Dimensions (H x W x D): 1164 mm x 306 mm x 457 mm
• Weight: 41 kg (approx. 90.4 lbs) net per speaker
• Connections: Dual pairs of binding posts supporting bi-wiring or bi-amping configurations.
