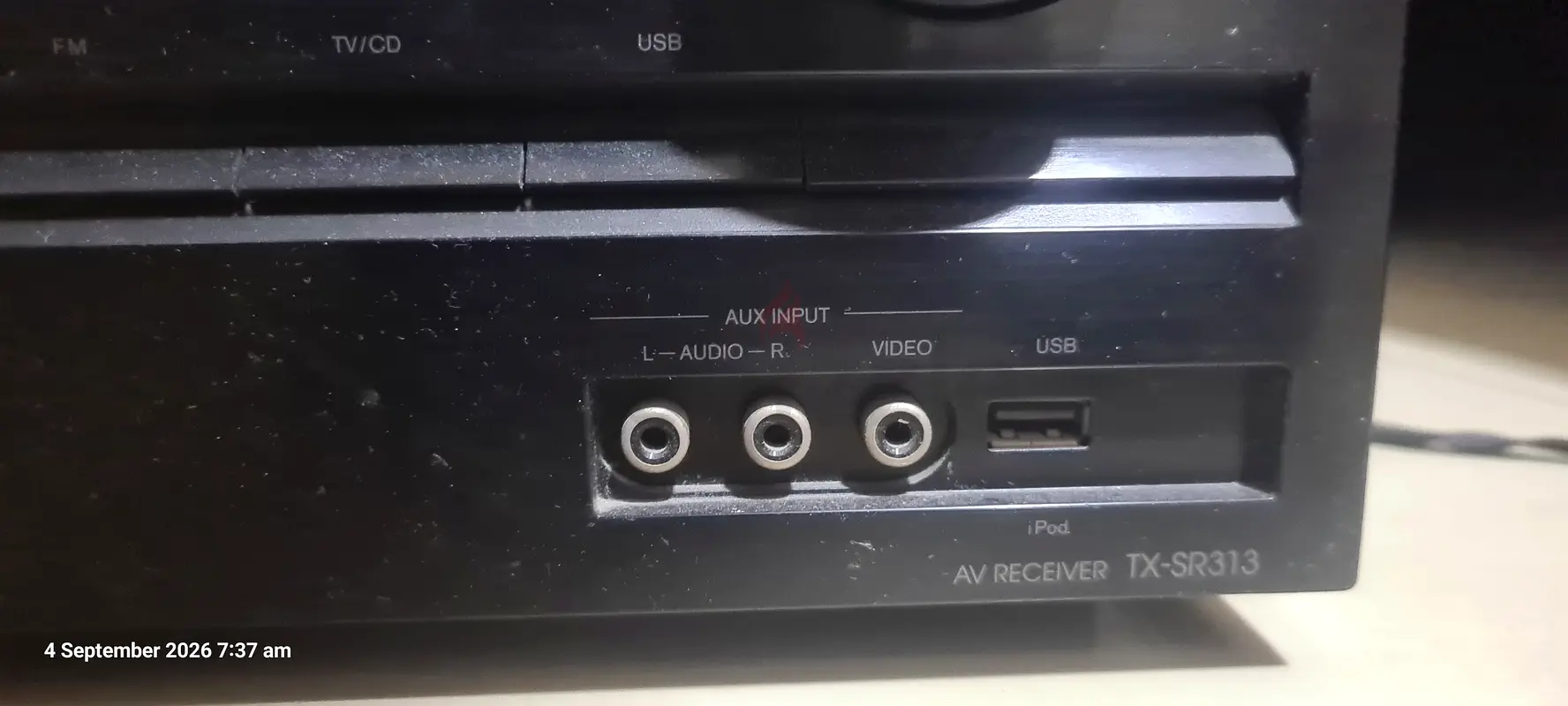

Onkyo Avr TX-SR313 used for sale

AED 300

jaikumar

5.0

1 items live

Item Details

Age

5-10 years

Condition

A bit of wear and tear, but in good working condition

Warranty

Does not apply

Usage

Used an average amount, as frequently as would be expected

Posted on: 5th September 2026

Description

Amplifier Section
Output Power: 100 W/Channel (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Dynamic Power
160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
Optimum Gain Volume Circuitry
Massive High Current Power Supply (H.C.P.S.) Transformer
PLL (Phase Locked Loop) Jitter-Cleaning Circuit for S/PDIF Audio
Measurements
Total Harmonic Distortion: 0.08% (20 Hz–20 kHz, Half Power)
Damping Factor: 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance: 200 mV/47 kΩ (Line)
Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (DSP Bypass)
RCA Output Level and Impedance
Nominal: 200 mV/2.2 kΩ (Rec Out)
Maximum: 2.0 V/2.2 kΩ (Rec Out)
Tone Control
±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio: 100 dB (Line, IHF-A)
Speaker Impedance: 6 Ω–16 Ω
Audio Processing
TI Burr-Brown 192 kHz/24-bit DACs
32-bit DSP Chip for Advanced Processing
WRAT (Wide Range Amplifier Technology)
Advanced Music Optimizer for Compressed Digital Audio Files
Theater-Dimensional Virtual Surround
CinemaFILTER
Direct Mode
Double Bass Function
Non-Scaling Configuration
Preset Listening Mode Memory
4 DSP Modes for Gaming
Rock
Sports
Action
RPG (Role Playing Game)
Decoding
Dolby TrueHD
DTS-HD Master Audio
Dolby Digital Plus
DTS-HD High-Resolution Audio

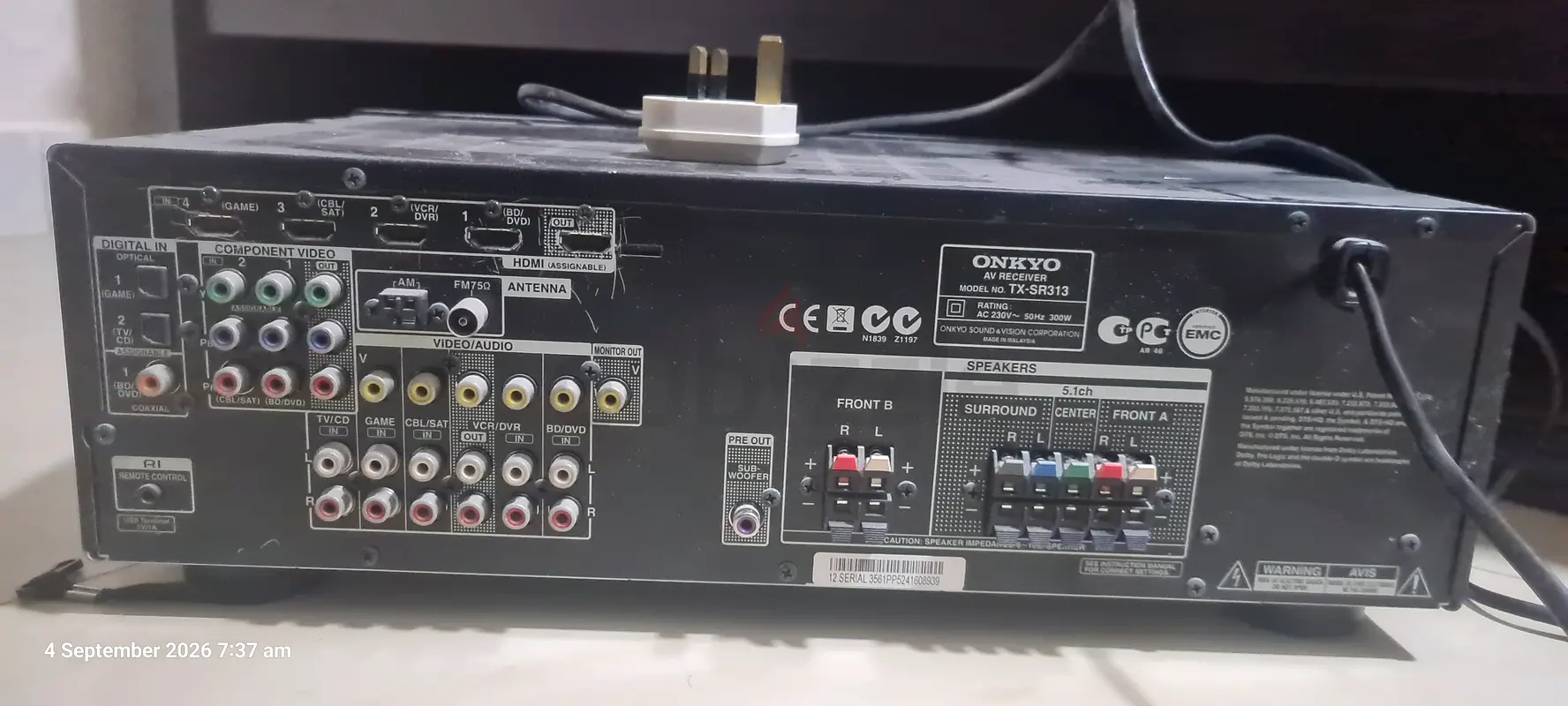

Connectivity
Inputs
4x HDMI
2x Component (HDTV-Capable (720p/1080i))
4x Composite
2x Digital Audio (Optical)
1x Digital Audio (Coaxial)
6x Analog Audio (RCA)
Outputs
1x HDMI
1x Component
1x Composite
1x Digital Audio (Optical)
1x Analog Audio (RCA)
Other
1x USB Port
Subwoofer Pre-Out
Speaker A/B Configuration
Color-Coded Speaker Terminals
Headphone Jack
Tuner Section
Reception Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
40 FM/AM Presets
RDS (PS/RT/PTY/TP)
General
Power Supply: AC 230 V~, 50/60 Hz
Power Consumption: 300 W
Dimensions (W x H x D): 435 x 150 x 318 mm
Weight: 7.6 kg
Supplied Accessories
Indoor FM Antenna
AM Loop Antenna
Speaker Cable Labels
Instruction Manual
Quick Start Guide Remote Control
2 AA (R6) Batteries
