Description
price market 60000
In a completely new condition
For urgent sale due to closure

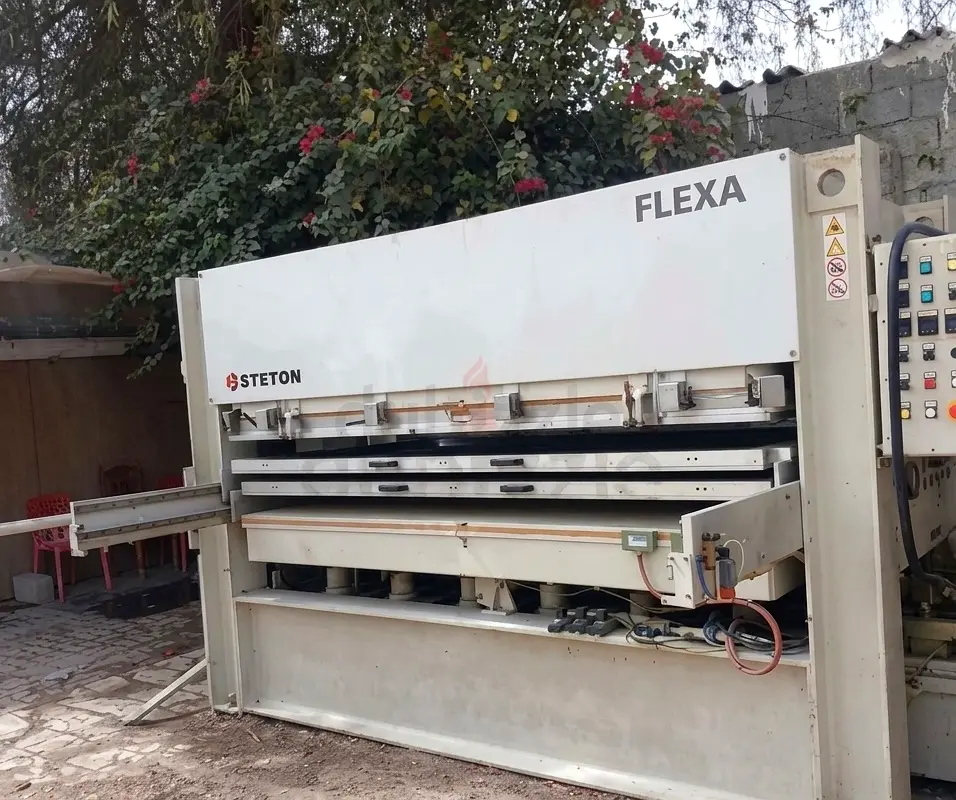

The moulding press FLEXA is used to cove
shaped panels with thermoplastic sheets (PVC) from one side and/or veneer from one or two sides.
Press structure profile welded beams, is suitable to bear the high pressures required by this kind of processing.
Top platen electrically heated.
The bottom mobile platen is driven by a group of racks acting along the platen width and length and granting a perfect parallelism during platen rise/fall.
It can be equipped with extractable aluminium tray (one or two) to facilitate manual loading/unloading. O RING silicon sealing wire between fixed platen and extractable tray.
Heating of pressurising air by means of electric exchanger; the air heating circuit has been conceived to ensure an even heating on the total surface for a perfect final result.
Air tank connected to the plant. Vacuum device equipped with high power pump for immediate air vacuum.
Electric control board with PLC to control the working cycle step by step:
Hydraulic pressure on the platen and air pressure inside the pressurisation chamber
Air temperature
Automatic pressure reset device
Time for automatic opening
Time for gluing control
Opening/closing pushbuttons
TECHNICAL DATA
Specific working pressure: 6 kg/cm2
Cylinders diameter: Ø 85 mm.
Stroke of cylinders: 450 mm.
Useful working dimensions: 2350×1250 / 2850×1250 mm
Nr. of pressing cylinders: 12
Total pressure: 200 / 240 ton.
OPTIONAL
Manual cutter for PVC cut
Spare membrane 25/14 30/14
Loading/unloading tray 25/14 – 30/14
Double loading/unloading tray 25/14 – 30/14
