4 Side moulder QMB633 H-D

AED 242,250

Sanjan

66 items live

Item Details

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 16th April 2026

Description

The second bottom cutter: 11\15 kW\HP

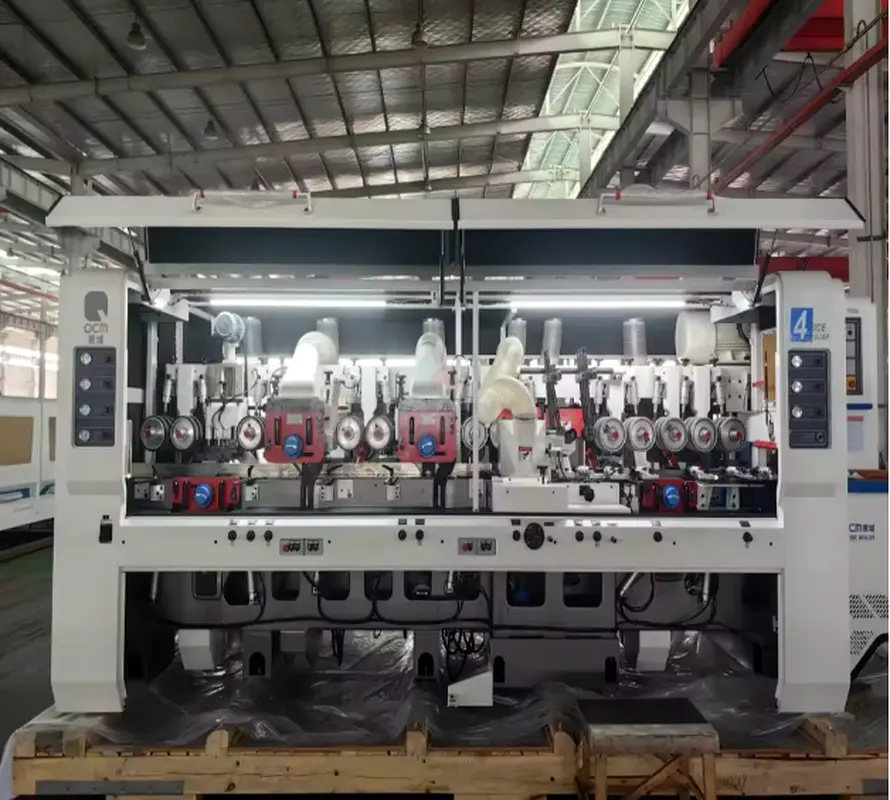

High-quality QMB633 H-D 4 Side Moulder available for sale. This heavy-duty woodworking machine is designed for precision shaping and smooth finishing of wooden profiles on all four sides in a single pass. Ideal for carpentry workshops, furniture factories, and wood processing unit

Working width: 50~330mm
Working thickness: 20~250mm
Min.working length (Intermitent\continuous): 700\300mm
Dia.of spindle: Φ50mm
Dia.of feeding roller: Φ180mm
Feeding speed: 8~36m/min
Rotation speed of spindle: 6000 r/min
Cutter dia. First bottom cutter: Φ140mm
Total power: 84\112kW\HP
The first bottom cutter: 11\15 kW\HP
Left vertical cutter: 11\15kW\HP
Right vertical cutter: 11\15 kW\HP
The first upper cutter: 15\20 kW\HP
The second upper cutter: 11\15 kW\HP
Feeding motor: 11\15 kW\HP
Beam lifting motor: 1.5\2 kW\HP
Upper cutter lifting motor: 0.75\1 kW\HP
Radial adjustment of the vertical spindle 0.37\0.5 kW\HP
Suction hood Dia: 6xΦ180 mm
Air supply pressure: 0.6 Mpa
Overall dimensions: 6000x2280x2090 mm
Weight: 9600kg
Rear pressing plate elevation: 0.37\0.5 kW\HP
