CNC Lathe Fanuc

AED 100

Mehran

5 items live

Item Details

Condition

A bit of wear and tear, but in good working condition

Usage

Used an average amount, as frequently as would be expected

Posted on: 3rd February 2026

Description

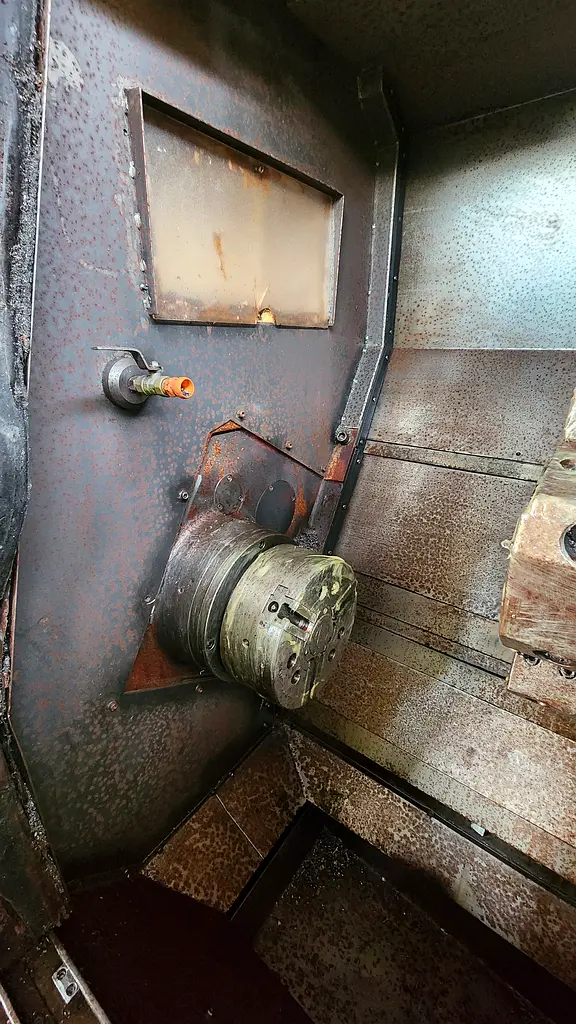

CNC lathe Hwacheon

Fanuc control O-T

Working Capacity:
Max. Swing Over Bed: ~ 450 mm
Max. Swing Over Cross Slide: ~ 260 mm
Max. Turning Diameter: ~ 300–320 mm
Max. Turning Length: ~ 500 mm
Distance Between Centers: ~ 550 mm
Spindle:
Spindle Bore: ~ 52 mm
Spindle Nose: A2-6
Spindle Speed: up to 4,000 rpm
Chuck:
Chuck Size: 8 inch (3-jaw)
Turret:
Tool Turret: 6-station
Tool Size: 20 × 20 mm
Boring Bar Capacity: Ø32 mm
Axes Travel:
X-Axis Travel: ~160 mm
Z-Axis Travel: ~520 mm
Motor & Power
Main Spindle Motor: 11 kW
Power Supply: 380 / 220 V, 3-Phase, 50/60 Hz
Machine Weight & Dimensions
Machine Weight: ~ 3,200 kg
Overall Dimensions (L×W×H): ~ 2,400 × 1,600 × 1,700 mm
