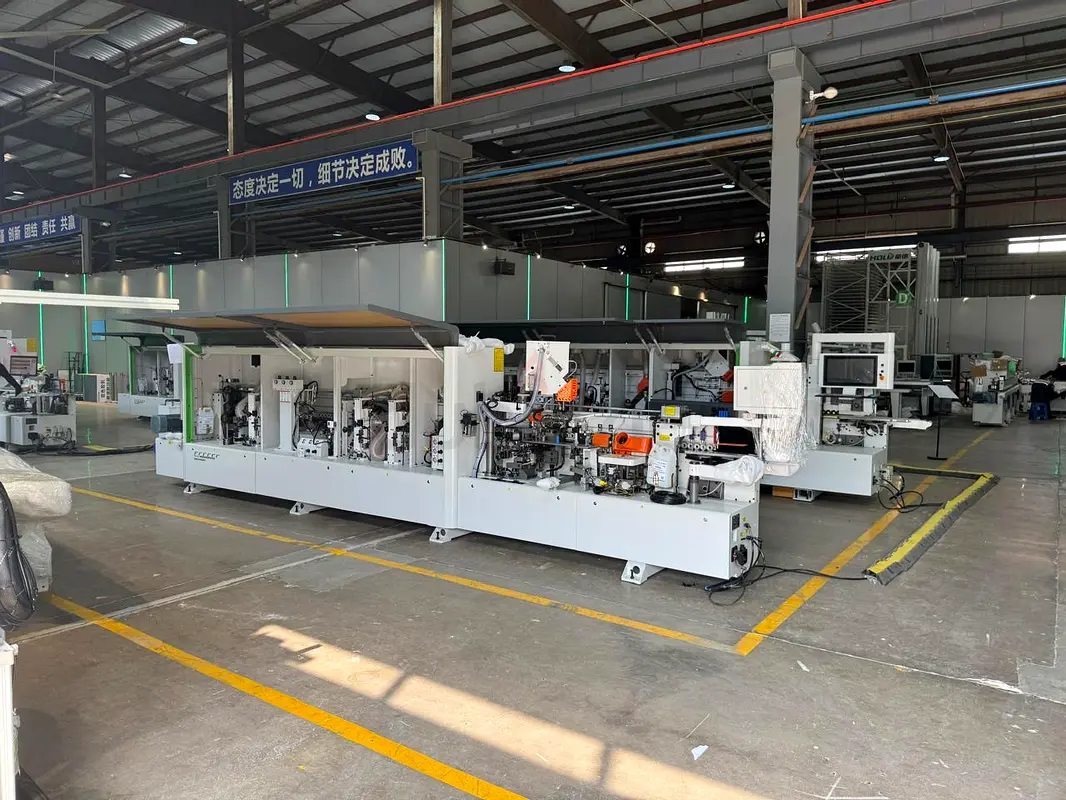

Full automatic edge banding machine lipping machine for sale

AED 75,000

colin

33 items live

Item Details

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 24th April 2026

Description

Processes :
Pre milling - glue system- pressing -end cutting - find trimming -corner trimming - scrapping - flexible scrapping -buffering

PARAMETER DATA
Lifting

Electric lifting
Feeding Speed

10m/min
Edge Band Thickness

0.4-3mm
Panel Thickness

10-60mm
Panel Length

≥120mm
Panel Width

≥100mm
Minimum Panel Size

120x100mm
Working Air Pressure

0.6Mpa
SIZE
5100x750x1230mm ,height of led：150MM

Description
ontrol System
• Current and voltage display; edge band pre-feeding function; intelligent monitoring.
• Inverter fault code display; automatic edge band counting.
• Intelligent frequency monitoring; user-friendly intelligent interface.
Upgrate to 10’ screen

Electric Press Beam Lifting
• Touch screen control eliminates the hassle of manual height adjustments.

Pre-Milling
• (Maximum pre-milling amount should be ≤1mm.)
• After edge trimming through the milling mechanism, defects on the processed surface, such as wavy marks, burrs, or uneven edges, can be removed. This ensures tighter bonding between the edge band and the panel, improving the overall aesthetic and achieving better edge sealing results.

Bottom EVA Gluing System

Pressing
• Strong pressing force ensures the edge band adheres closely to the panel. Excess hot melt adhesive is scraped off, resulting in smaller glue lines and a perfect edge sealing effect.

Front and Rear End Cutting
• Uses linear guide rails and sliders for high precision and durability.
• Equipped with an automatic oiling system for the rails, extending equipment lifespan.
• Quickly trims the front and rear edges of the edge band with precise pneumatic control, ensuring stable processing of shorter and thicker workpieces.

Fine Trimming
• Trims the protruding edge band on the upper and lower panel surfaces into an R-shaped corner.
• Ensures the upper and lower edges of the edge band are smooth and flush with the panel surface.

Corner rounding
• Rounds the corners (chamfers) of the panel edges, making the four corners smooth and aesthetically pleasing.

Scraping
• Arc shaping and smooth edges.
• Two sets of different arc scraping knives are used flexibly according to the edge band thickness.
• Works seamlessly with trimming and buffing to achieve a perfect edge sealing effect.

Flat Scraping
• Removes excess hot melt adhesive from the panel surface.

buffing
• Removes excess glue marks, making the edge band and panel surface smoother and cleaner.

Hardened Gear Surface Transmission Reducer Motor
• 2.2 kW power, ensuring stable operation.

Unique Design
• Coated Support Wheels:
o Auxiliary coated support wheels are installed at the front and rear of the support beam to prevent damage to the panel during infeed and outfeed.
